Summary

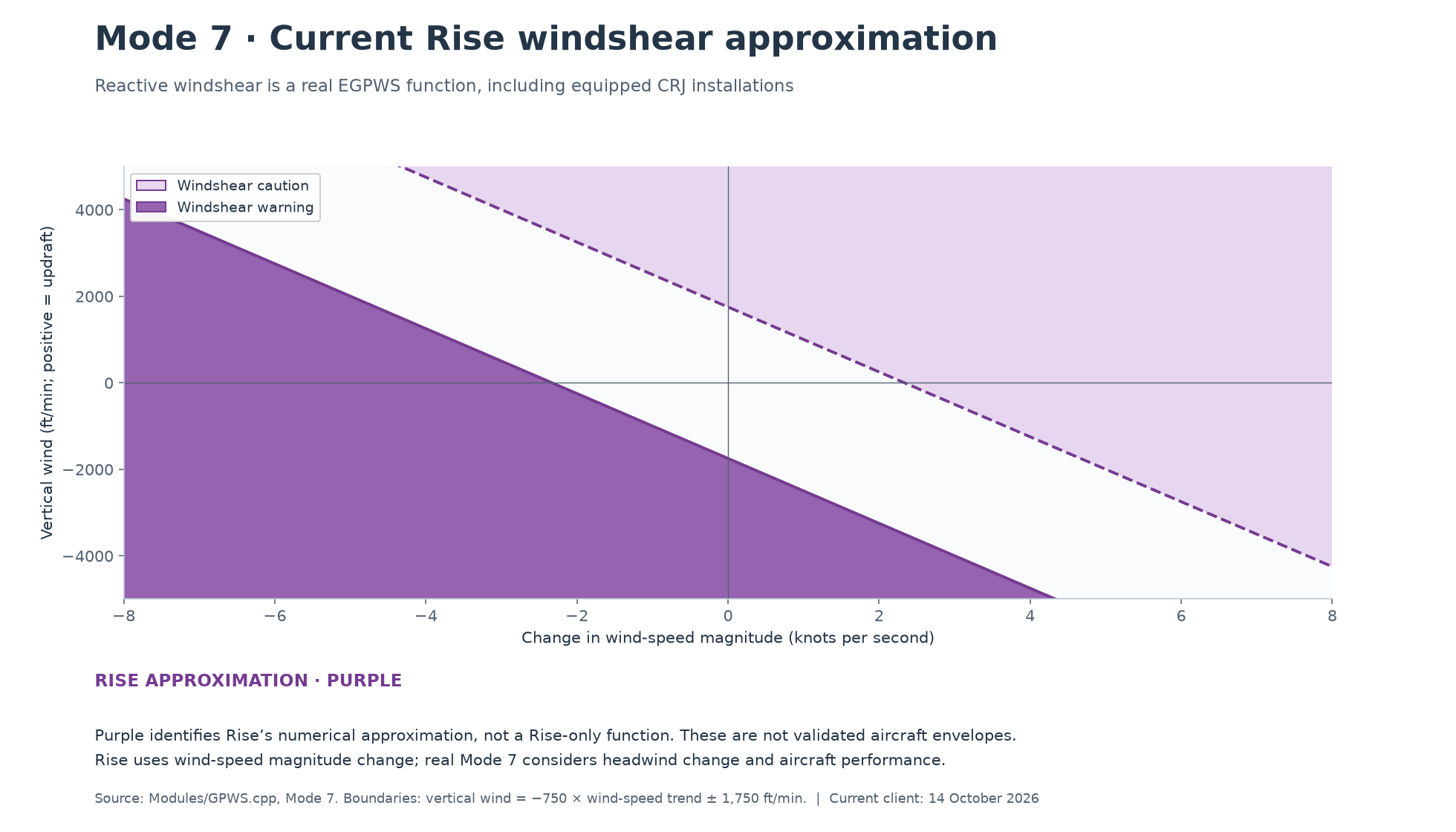

Corrected original Rise Mode 7 chart for ticket 1196. Reactive windshear is a real EGPWS function, including equipped CRJ installations. Purple marks the current Rise numerical approximation, not a Rise-only capability. Curves reproduce Modules/GPWS.cpp; they are not certified manufacturer envelopes. Aircraft references: Honeywell MK V/VII Pilot Guide Mode 7 and Bombardier CRJ100/200 Navigation, Mode 7. Replaces misleading Rise-extension wording in the earlier graph.
