Summary

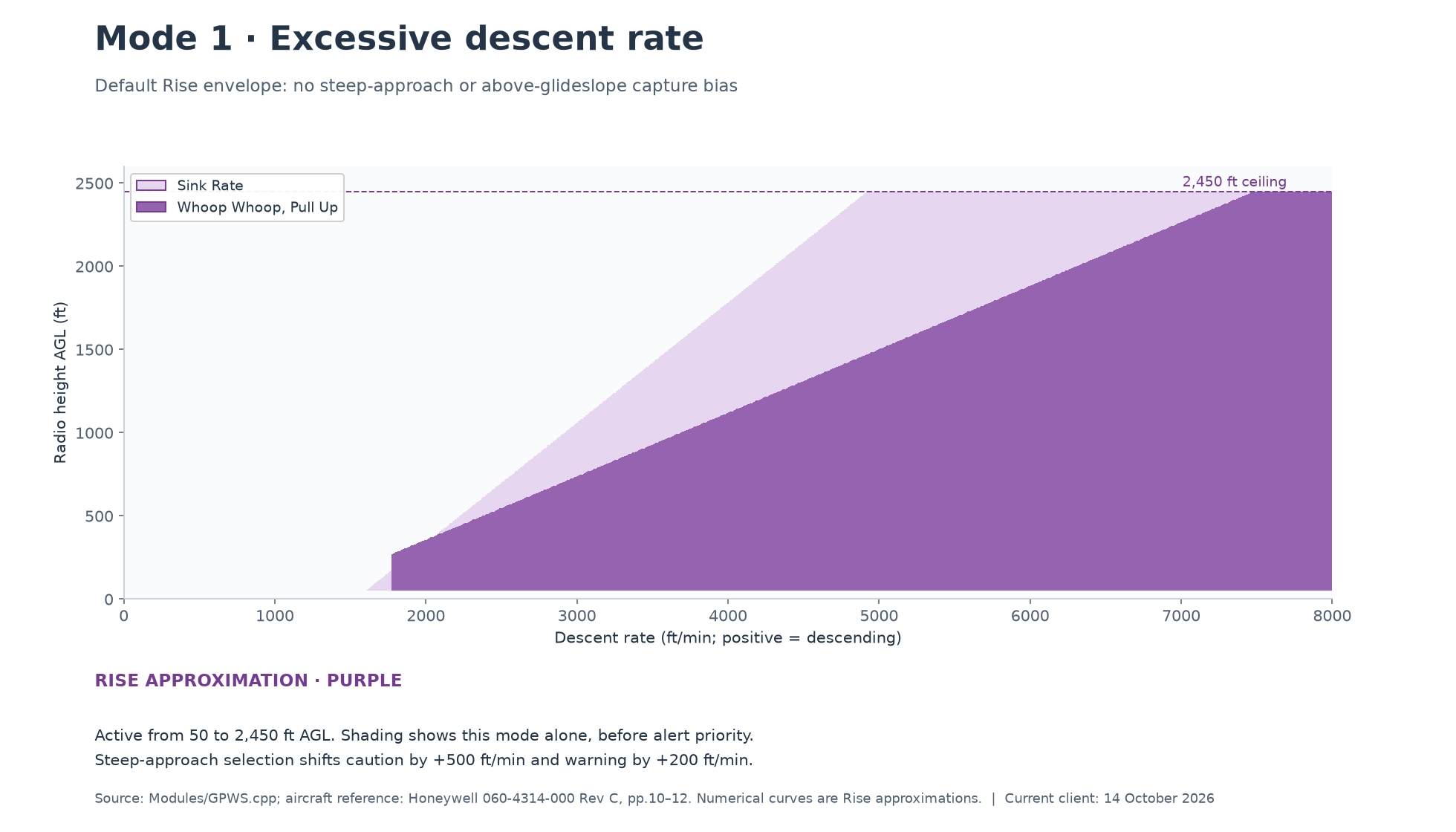

Original replacement graph for GPWS, 14 October 2026. Mode 1 default descent-rate envelope, 50–2450 ft AGL, without steep-approach/capture biases. Numerical curves are Rise approximations. Source: current Modules/GPWS.cpp and GpwsBehavior.h. Blue denotes documented jet rules; purple denotes Rise approximations or explicitly labeled illustrative inputs. Isolates this mode from alert priority and other modes.
