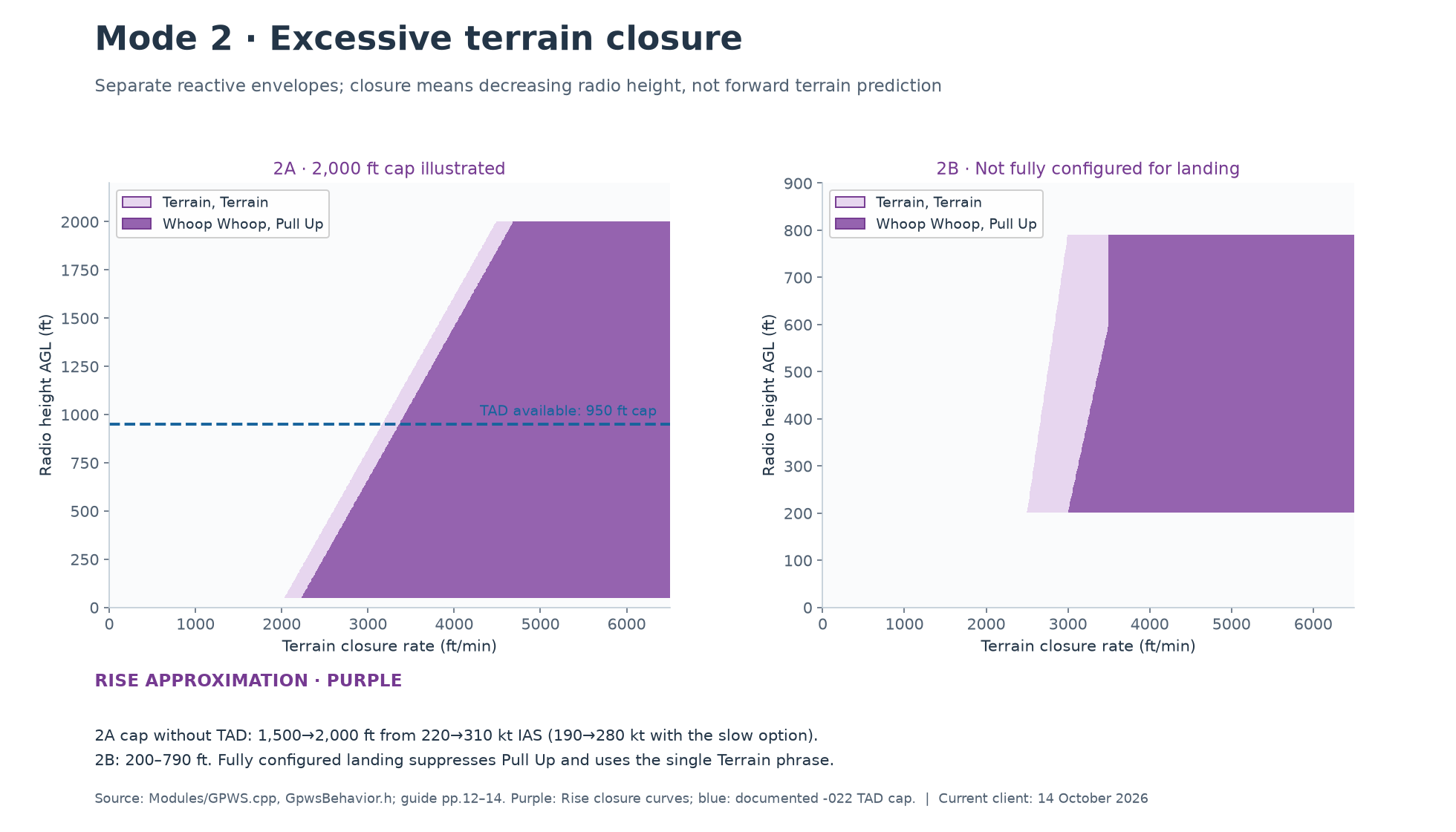

Original replacement graph for GPWS, 14 October 2026. Mode 2A and 2B terrain-closure envelopes. The 2A panel illustrates the 2000 ft cap without TAD; the documented 950 ft available-TAD cap is dashed blue. Source: current Modules/GPWS.cpp and GpwsBehavior.h. Blue denotes documented jet rules; purple denotes Rise approximations or explicitly labeled illustrative inputs. Isolates this mode from alert priority and other modes.
