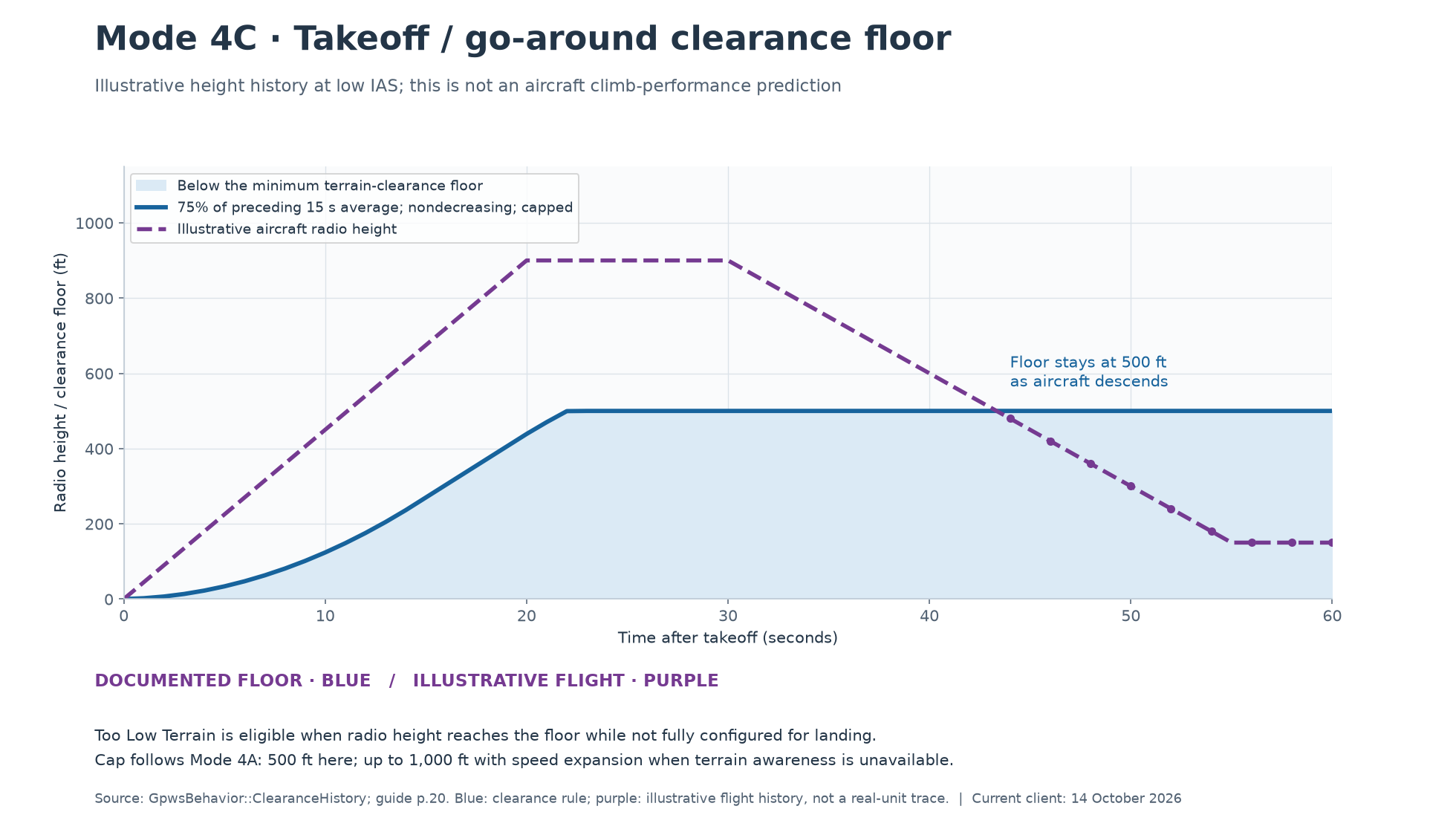

Original replacement graph for GPWS, 14 October 2026. Mode 4C time-history example. Blue shows the nondecreasing 75%-of-15-second-average clearance floor; purple is an illustrative aircraft height history, not measured flight data or a performance model. Source: current Modules/GPWS.cpp and GpwsBehavior.h. Blue denotes documented jet rules; purple denotes Rise approximations or explicitly labeled illustrative inputs. Isolates this mode from alert priority and other modes.
